Data Vault 2.0 Definition

To facilitate a more flexible approach, Data Vault 2.0 handles multiple source systems and frequently changing relationships by minimizing the maintenance workload.

This means that a change in one source system that creates new attributes can be easily implemented by adding another satellite to the Data Vault model. Simply put, new and changing relationships just close one link and create another one.

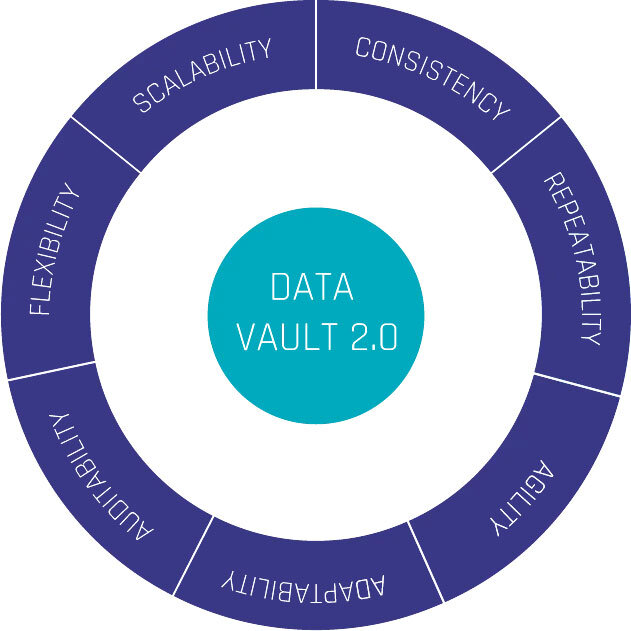

These examples show the level of high flexibility provided by Data Vault 2.0.

As a business grows, the requirements for data grow as well.

In a traditional environment, this would require long implementation processes, high costs and an extensive list of service -wide impacts.

Though with Data Vault 2.0, new functionalities are able to be added easily and more quickly while having less impact on the downstream systems.

Data is used to make important business decisions more frequently.

To ensure that this data can be trusted, data consistency is critical.

To this end, Data Vault 2.0 embeds data consistency in the Data Vault model. In that way, it is possible to capture data in a consistent manner even when the source data, or its delivery, is inconsistent.

And this all done while being able to load data in parallel with the use of hash values.
This enables faster data access while improving the business user’s satisfaction.

For this reason, Data Vault’s high consistency paves the way for using automation tools to automatically model your Data Vault 2.0 model.

Data Vault methodology follows the CMMI principle.

CMMI is a process-level improvement training and appraisal program that includes five different maturity levels of a company.

This enables it to focus on continually improving processes based on quantitative and prescriptive analysis.

It’s also why Data Vault 2.0 aims to discover the exact maturity level to implement structured development processes.

This simple yet detailed process enables easy repeatability when it comes to performing a new modification on an already planned process.

One of Data Vault 2.0’s foundational pillars is a methodology which includes several principles of agile work processes.

Therefore, Data Vault projects have a short, scope-controlled release cycle. Usually these cycles consist of a production release every two to three weeks. This enables the development team to work closely alongside the business’ needs to create a better solution.

A modern business environment often includes frequent changes.

These changes can either be small, with little to zero impact on the data structure, or big changes with huge consequences for the underlying data structure.

A good potential use case would be the takeover of another company.

This would create a need to integrate complex new data sources, which is one of Data Vault’s core strengths. The new sources would be modelled as an extension to the existing Data Vault 2.0 model with zero change impact on the existing model.

This lowers the required maintenance to a minimum.

Working with data often requires detailed lineage information about the processed data. With Data Vault 2.0, there are different methods that help keep track of your data.

For example, a load timestamp and a detailed record source are required for every row that arrives in the data warehouse. The Data Vault model also historically tracks all changes in your data by using the load date as part of the satellite’s primary key. These factors push the auditability of Data Vault to better levels.

The staging layer is used when loading batch data into the data warehouse.
Its primary purpose is to extract the source data quickly so that the workload can be reduced on the operational systems. Note that the staging area does not persist data unlike the traditional architectures.

The unmodified data is loaded into the raw data vault which represents the enterprise data warehouse layer. The purpose of the data warehouse is to hold all historical, time-variant data. All of which is stored in the granularity as provided by the source systems. The data is nonvolatile and every change in the source system is tracked by the Data Vault structure.

After the data has been loaded into the Data Vault model, complete with hubs, links, and satellites, business rules are applied in the business vault. This process occurs on top of the data in the raw data vault.
Once the business logic is applied, both the raw data vault and the business vault are joined and restructured into the business model for information delivery in the information marts.

In addition, the enterprise data warehouse layer can be extended by optional vaults —  a metrics vault and an operational vault. The use of the metrics vault is to capture and record runtime information. The operational vault stores data fed into the data warehouse from operational systems. All optional vaults, the metrics vault, the business vault and the operational vault, are part of the Data Vault and are integrated into the data warehouse layer.

Unlike traditional data warehouses, the data warehouse layer of the Data Vault 2.0 architecture is not directly accessed by end-users. This is because the goal of the enterprise data warehouse is to provide valuable information to its end-users. Note that we use the term information instead of data for this layer.

Further note that the information in the information mart is subject oriented and can be in aggregated form, flat or wide, prepared for reporting, highly indexed, redundant and quality cleansed.

It often follows the star schema and forms the basis for both relational reporting and multidimensional OLAP cubes. Other examples for information marts include the Error Mart and the Meta Mart. They are the central location for errors in the data warehouse and the metadata, respectively.

Due to the platform independence of Data Vault 2.0, NoSQL can be used for each data warehouse layer including the stage area, the enterprise data warehouse layer, and information delivery. Therefore, the NoSQL database could be used as a staging area which can load data into the relational Data Vault layer.

Any rule that does not change the content of individual fields or grain. Instead it only modifies the structure of the incoming data.

Any rule that modifies the content of the data such as turning data into information.

Any structure which the end-user has access to and can be used to produce reports.

The raw data modeled as hubs, links and satellites as well as the content of these artifacts which are provided by the source.

Data that has been modified by the business rules and is modeled in DV style tables; sparsely created.

Realtime Data loads as a flow of transactional data.
