A problem that occurs when querying the data out of the Raw Data Vault happens when there are multiple satellites on a hub or a link:

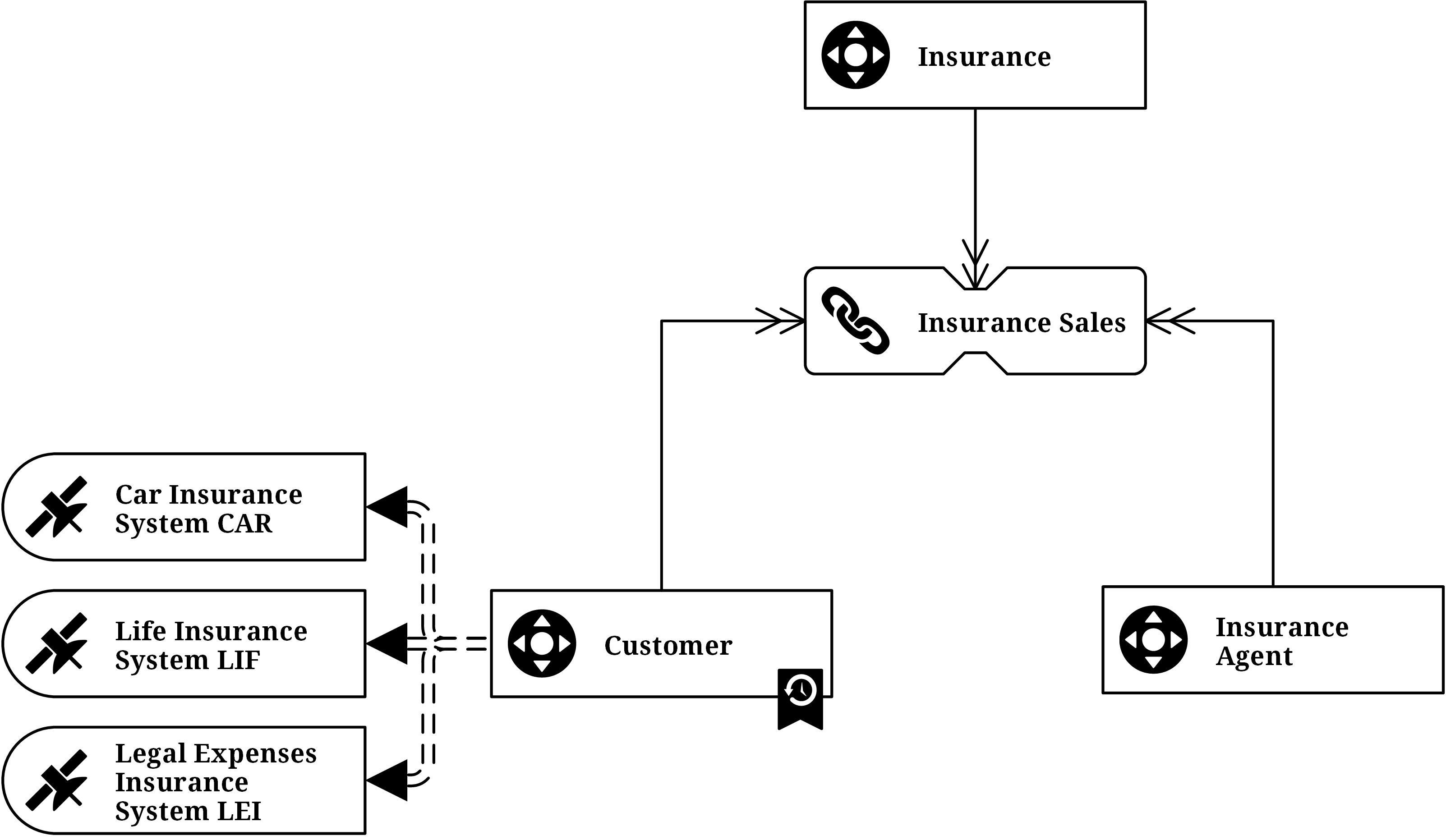

In the above example, there are multiple satellites on the hub Customer and link included in the diagram. This is a very common situation for data warehouse solutions because they integrate data from multiple source systems. However, this situation increases the complexity when querying the data out of the Raw Data Vault. The problem arises because the changes to the business objects stored in the source systems don’t happen at the same time. Instead, a business object, such as a customer (an assured person), is updated in one of the many source systems at a given time, then updated in another system at another time, etc. Note that the PIT table is already attached to the hub, as indicated by the ribbon. Changes came in at various times, not related to each other. Most updates would be added when an insurance is concluded, but they did not affect all operational systems at the same time. And as a consequence, a change did not affect all satellites. Instead, it affected only the satellite that was supposed to cover the change (which is an advantage).
When building a data mart from this raw data, querying the customer data on a given date becomes complicated: the query should return the customer data as it was active according to the data warehouse delta process on the selected date. It requires outer join queries with complex time range handling involved to achieve this goal. With more than three satellites on a hub or link, this becomes complicated and slow. The better approach is to use equal-join queries for retrieving the data from the Raw Data Vault. To achieve this, a special entity type is used in Data Vault modeling: point in time tables (PIT). This entity is introduced to a Data Vault model whenever the query performance is too low for a given hub or link and surrounding satellites.
Because the data in a PIT table is system-computed and is not originating from a source system, the data is not to be audited and not in the Raw Vault, so the structure can be modified to include computed columns.
The PIT serves two purposes:
Simplify the combination of multiple deltas at different “point in time”

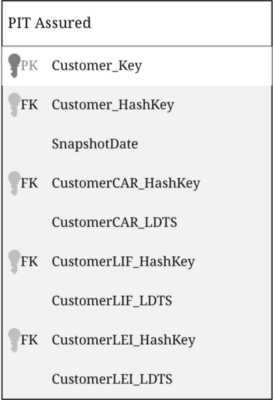

A PIT table creates snapshots of data for dates specified by the data consumers upstream. For example, it is often usual to report the current state of data each day. To accommodate these requirements, the PIT table includes the date and time of the snapshot, in combination with the business key, as a unique key of the entity (a hashed key including these two attributes, named as CustomerKey in figure 2). For each of these combinations, the PIT table contains the load dates and the corresponding hash keys from each satellite that corresponds best with the snapshot date.
Reduce the complexity of joins for performance reasons
The PIT table is like an index used by the query and provides information about the active satellite entries per snapshot date. The goal is to materialize as much of the join logic as possible and end up with an inner join with equi-join conditions only. This join type is the most performant version of joining on most (if not all) relational database servers. In order to maximize the performance of the PIT table while maintaining low storage requirements, only one ghost record is required in each satellite used by the PIT table. This ghost record is used when no record is active in the referenced satellite and serves as the unknown or NULL case. By using the ghost record, it is possible to avoid NULL checks in general, because the join condition will always point to an active record in the satellite table: either an actual record which is active at the given snapshot date or the ghost record.
The table above (Table 1) shows an assured person with frozen data states, one from the 8th, one from the 9th of October 2018. On the 8th there was no record for this customer in the legal expenses insurance satellite. For that reason both the hash key and the load date timestamp are NULL. For a better query performance, these NULL values are pointed on the ghost record in the related satellite table to avoid searching a record which not exists.
When customer data must be deleted for one business only and PII information is used as Business Key, just the Link entry and the descriptive attributes in the specific Satellite have to be deleted. The activity history is still available, can be used for analytical reasons and is not traceable to the customer itself. The additional advantage of this “business split” is when only one business is affected in case of deleting customer data, i.e. each business comes from different subsidiaries, and only the car insurance data must be deleted. Furthermore, keep in mind that deleting the Business Key only (and keep the Hash Key) does not result in GDPR compliance (and does not meet the Data Vault 2.0 standard anyway as the Business Key is used in link tables). The Hash Key in Data Vault 2.0 is not used to encrypt data, but for performance reasons. The key in the Links and the business driven Hubs, as we are talking about, can not be calculated back as it is a complete surrogate key. As soon as the customer wants to be deleted completely as he/she is no longer a customer in any of your business, you delete the record from the main Hub as well.
Otherwise, if there is no additional artificial key for the customer, after deleting PII data, you can not tie your data back to an object (an anchor point), what makes them (in many cases) useless.
Conclusion
The purposes of PIT tables are to improve the query performance by eliminating outer joins and allow inner joins with equi join conditions (best performance). Additionally PIT tables enhance partitioning and enable full scalability of star schemas (which should be completely virtualized) on top of the Data Vault. Furthermore, end users don’t have to join through all satellite tables, but join just one table for one business object what reduces the query complexity for ad-hoc queries.
